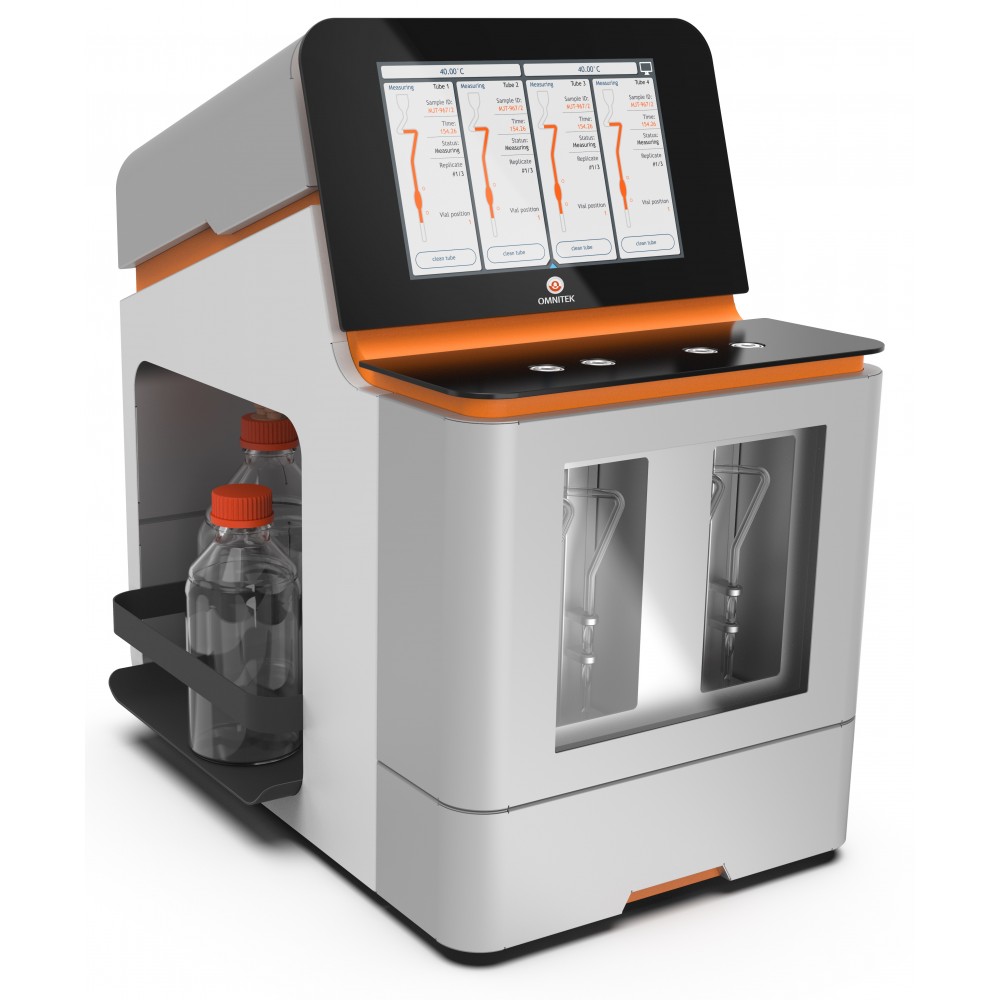

S-flow IV⁺ Kinematic Viscometer

The newest generation of S-flow systems offers the ultimate in fast, accurate viscosity testing and now also features an optional autosampler for fully unattended operation

The latest generation of new S-flow builds on the strong foundation of its predecessors to offer the ultimate in automatic viscosity testing of Newtonian samples such as petroleum products. The system offers all the tried and tested advantages of a Houillon-type tube design such as short process times, small sample volume and low solvent consumption, but now also includes an optional autosampler to allow for fully unattended operation. All controlled from a central user interface that takes care of result storage, autosampler control, VI calculations and much more. It complies fully with ASTM D7279 and as such, provides full correlation to ASTM D445. It is the ideal system for used oil analysis labs that need to test a wide range of lubricant viscosities.

The new S-flow IV+ consists of a 2 bath system with 2 tubes in each bath, providing a total of 4 tubes. The baths were designed to work independently, making it possible to use both baths at the same temperature, or at different temperature, ranging from 20°C to 120°C. Other options include dual solvent cleaning and integrated duplo testing which obtains 2 flow time determinations with only 1 sample injection.

All measurement parameters, such as warmup times and cleaning parameters can be set through the high resolution 12” touchscreen or with optional PC software. The diagnostic system alerts the operator to possible issues such as empty solvent supply tanks, full waste bottles and other potential issues. The optional auto-sampler is fully modular and in-field upgradeable, meaning you can purchase the analyser first and then upgrade to auto-sampling when the need arises.

  • Compliant with requirements for ASTM D7279, ASTM 2270 and correlation to ASTM D445
    High throughput: up to 80 samples per hour under ideal operation conditions
    Small sample volume: 0.3 – 1.0 ml
    Low solvent consumption: 2 – 3 ml per sample.
    Fully automatic cleaning and drying
    Fast & easy tube replacement (tubes are not connected to optical sensors)
    Measurement at 2 temperatures in 1 system simultaneously
    Integrated VI calculations
    Stand-alone unit. No PC required.
    Optional autosampler
  • ASTM D7279
  • ASTM D2270
